/ HZW /

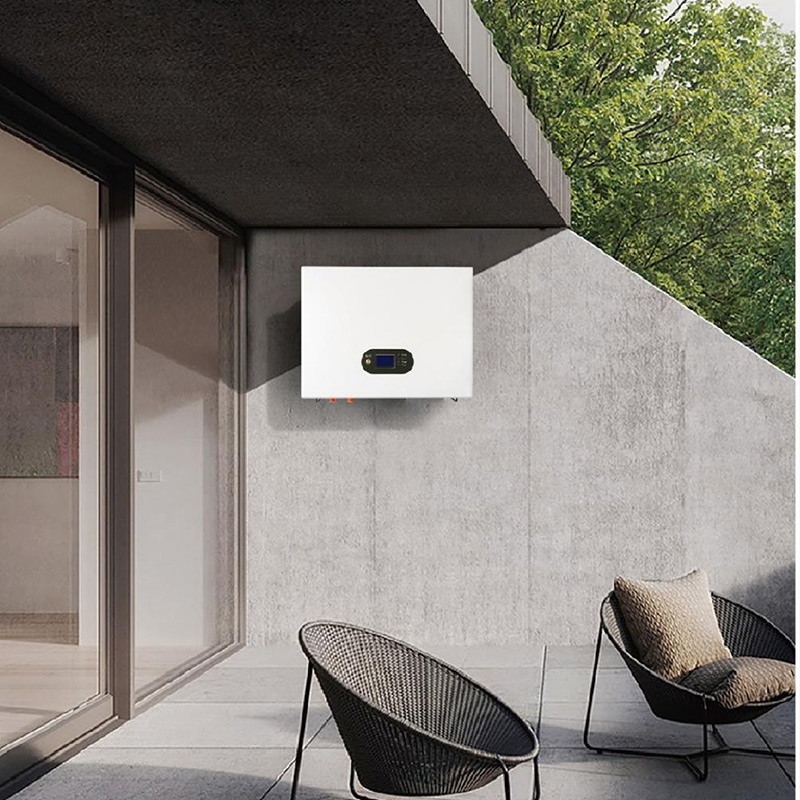

Wall mounted lithium battery pack
☑ Low voltage 51.2v
☑ Energy density increase 30%
☑ Cost reduction 20%
Description
| Model | Voltage(V) | Capacity (Ah) | Weight (KG) | Dimension(mm) | Mounted Type | ||
| Length | Depth | Height | |||||
| HZW-100-16S | 51.2 | 100 | 54 | 440 | 453 | 183 | Rack |
| HZW-280-16S | 51.2 | 280 | 115 | 627 | 473 | 244 | |
| ELECTRICAL | |||||||
| Cycle life | 6000 times | ||||||
| Charging voltage | 3.65V" Cells number | ||||||
| Discharging voltage | 2.5V" Cells number | ||||||
| Charging current | 1C max | ||||||
| Internal resistance | ≤30mΩ | ||||||
| BMS | |||||||
| Power consumption | <2W(Work)<100mW(Sleep) | ||||||
| Monitoring parameter | System voltage, current, cell voltage,cell temperature, module temperature | ||||||
| SOC | Intelligent algorithm | ||||||
| Communication | CAN/RS-485/RS-232 | ||||||
| Operation | |||||||
| Operating Temperature Range | -10℃-50℃ | ||||||
| Transport or Storage Temperature Range | -20℃-45℃ | ||||||
| Humidity | 15%-85%(No Condensing) | ||||||
| Warranty | 5 years | ||||||
| Certification | CE/IEC62619/TUV/MSDS/UN38.3 | ||||||
| Compatible with Growatt,Deye,Voltronic,Victron,Megarevo and more | |||||||
